B1, WEAR PARTS FOR MARKET GARDENING AND VINEYARDS

B1 wear parts for market gardening and vineyard machinery have been designed to ensure tool durability. Available in carbide.
Category:

Description

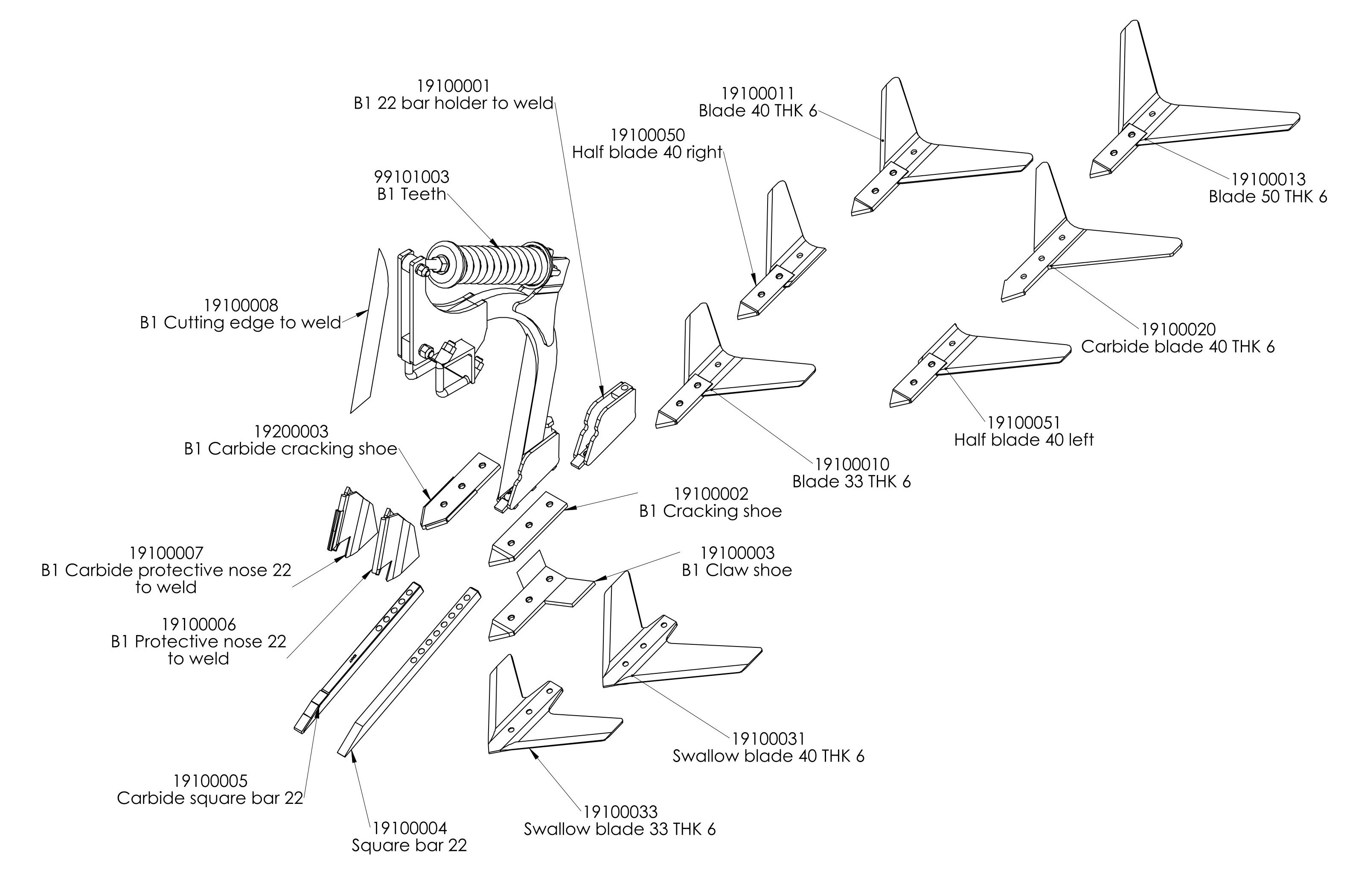

Reference no.NameDescriptionVisual
19100010
19100011
19100020
19100013
Blade 33 THK 6
Blade 40 THK 6
Carbide blade 40 THK 6
Blade 50 THK 6
Scalping blade. Used for stale seedbed work from the first centimetres. Width 40 cm. The blade’s rear positioning provides a stronger anchoring of the tip. This blade ensures optimal work in difficult conditions. Available in carbide.
19100033
19100031
Swallow blade 33 THK 6
Swallow blade 40 THK 6
Scalping blade. Used for stale seedbed work from the first centimetres. Width 33 or 40 cm. Available in carbide.
19100004
19100005
Square bar 22
Carbide square bar 22
Essential accessory for the machinery. Suitable for all types of work. Available in carbide.
19100006
19100007
Protective nose 22
Carbide protective nose 22
Protects the Actisol tooth bar holder. The protective nose has a profile adapted to the aerodynamic parameters.
19100002
19200003
Cracking shoe
Carbide cracking shoe
Suitable for all types of deep work. From 10 to over 40 cm. Available in carbide for abrasive soils.
19100081
19100083
19100080
19100082

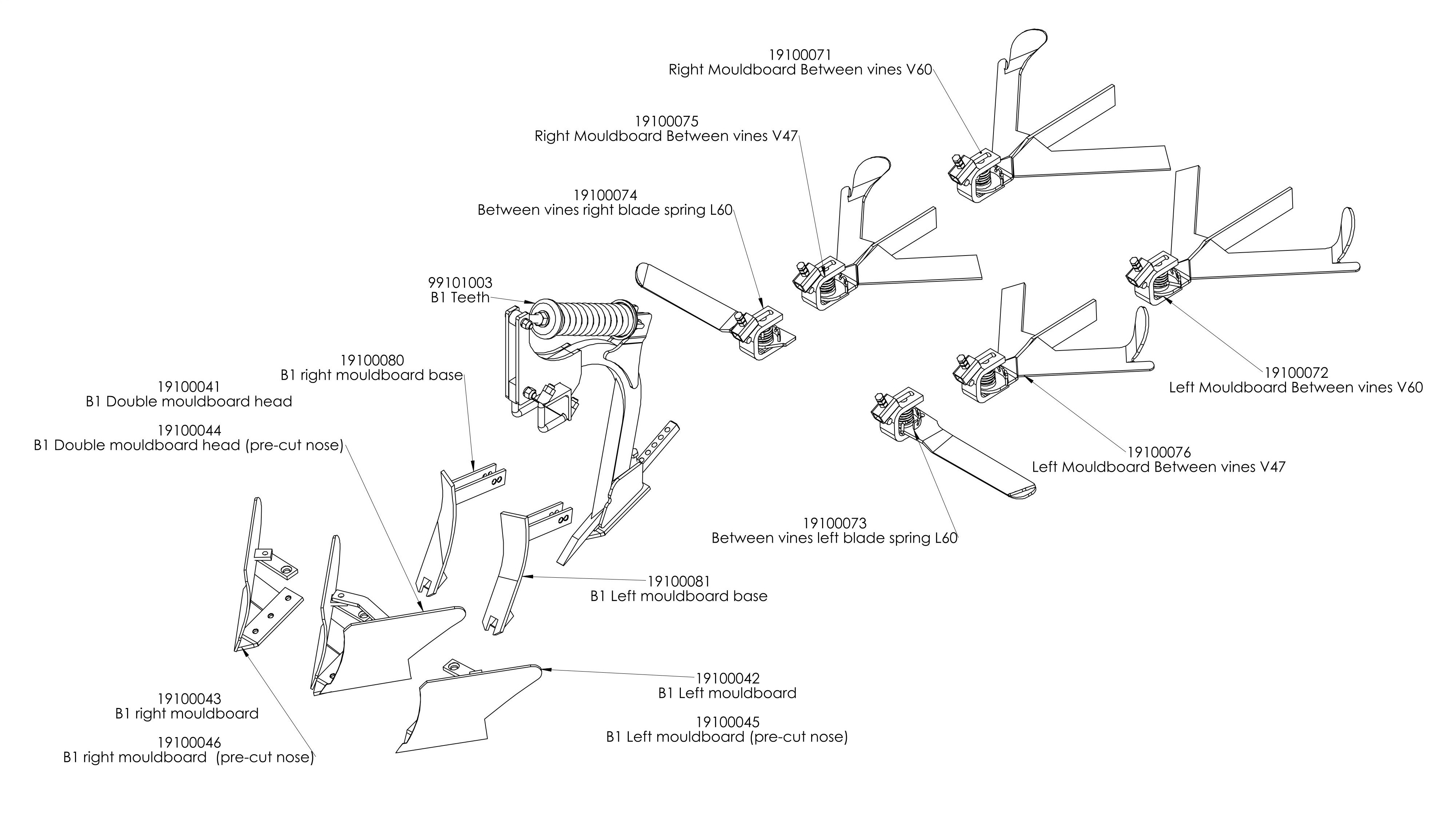

Mouldboard base left
Mouldboard base left (curved arm)
Mouldboard base right
Mouldboard base right (curved arm)
Accessory used with the swallow or standard blade to promote the integration of straw into the soil, destroy plant cover, and mix organic matter.
